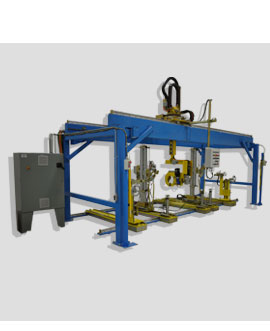

Taping machine GT6MC-4500-B


The machine is able to insulate closed coils and bars. It is a fully automatic machine with 6 motorized axes. The main components include:
-a portal frame on which moves a double direction carriage with all axes,
-a workstation to hold the coils or bars,
-a taping head.

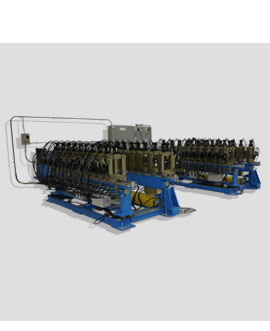

Double press DPC-3000


The machine is designed to press both legs of a full stator coil or two stator bars simultaneously per cycle. It consists of two banks of 10 pressing heads. Each pressing head includes a stirrup closed by a pivoting gate bar and is equipped with two hydraulic cylinders, one in the horizontal direction and the other one in the vertical direction.

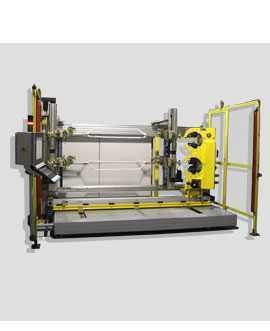

Taping machine GT4M-2000


The machine is capable to tape 2 coils simultaneously by means of a double taping head DTH220CE: 2 individual taping heads are stacked up one on top of another. Each taping head can apply 2 rolls of different types of tape with certain elasticity: mylar tape, glass tape, VPI dry tape, low resistance tape, etc. The 2 rolls of tape can be identical or different.

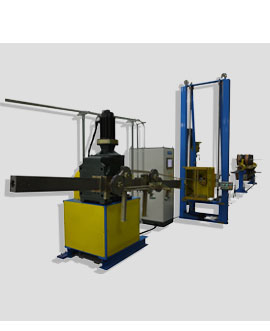

Loop winding line LWL-4000


Loop winding line LWL-4000 The line is designed to produce loops from reels of insulated copper wire. It consists of a combination of three machines all linked together: a PDA-24 pivoting dereeler, a TTM-600 turn taping machine and a LW-4000 loop winder.They are controlled by a common control system including a PLC. The system interface is done thru a touch screen.

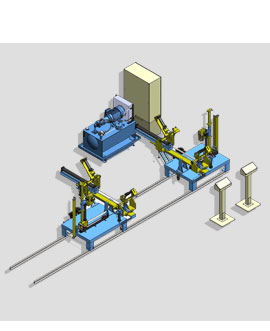

Hydraulic coil forming machine HCFM-4500


The hydraulic coil forming machine HCFM-4500 is designed to form and shape loops to full formed coils. It is a semi-automatic machine. It consists of 2 forming stations: one fixed and the other one movable on a rail system whose position is ajustable and lockable in function of the loop lenght.
